Mediterranean Excursion for Applied Acoustics’ Deep Tow Sparker
-

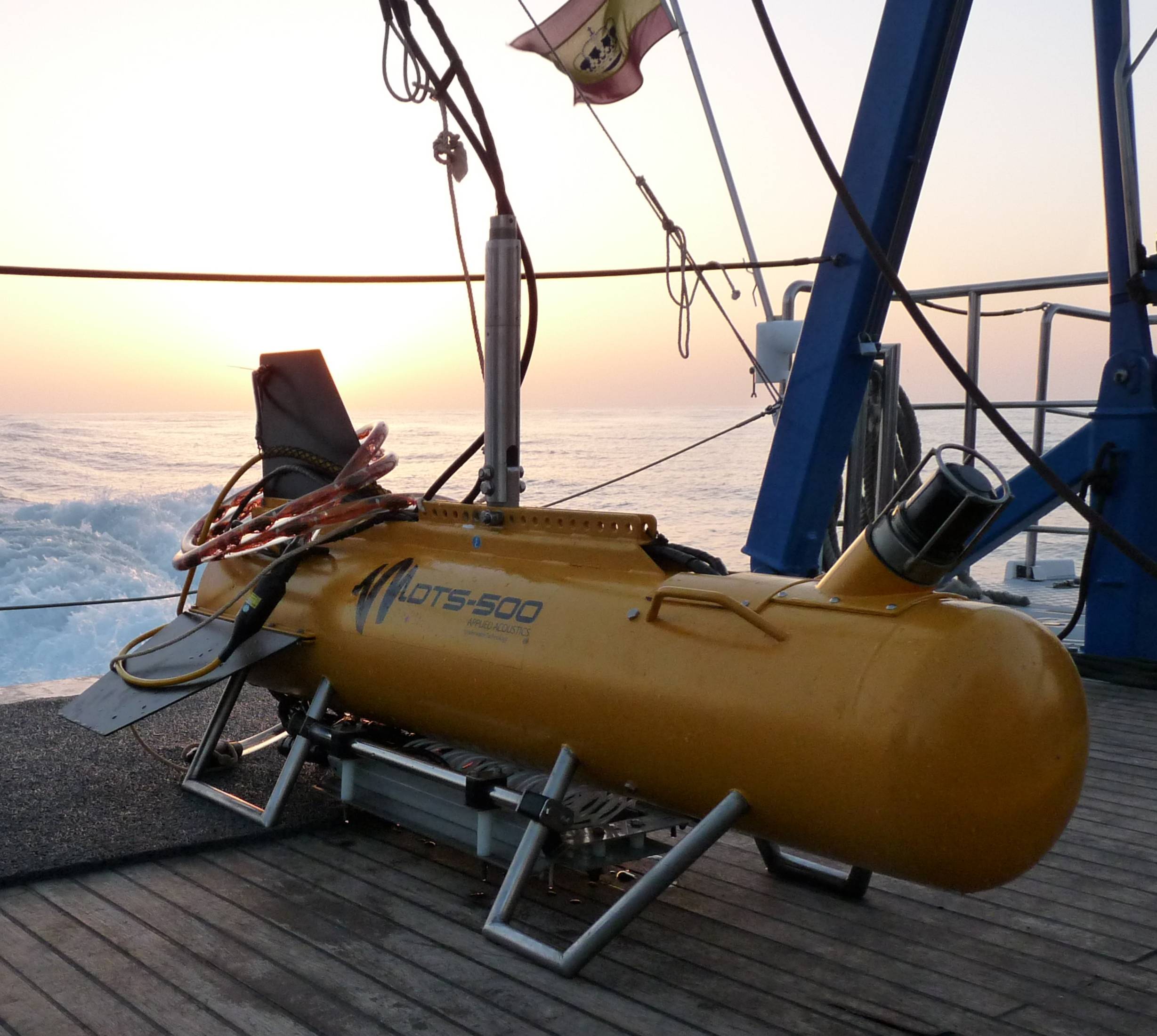

Photo: Applied Acoustics
-

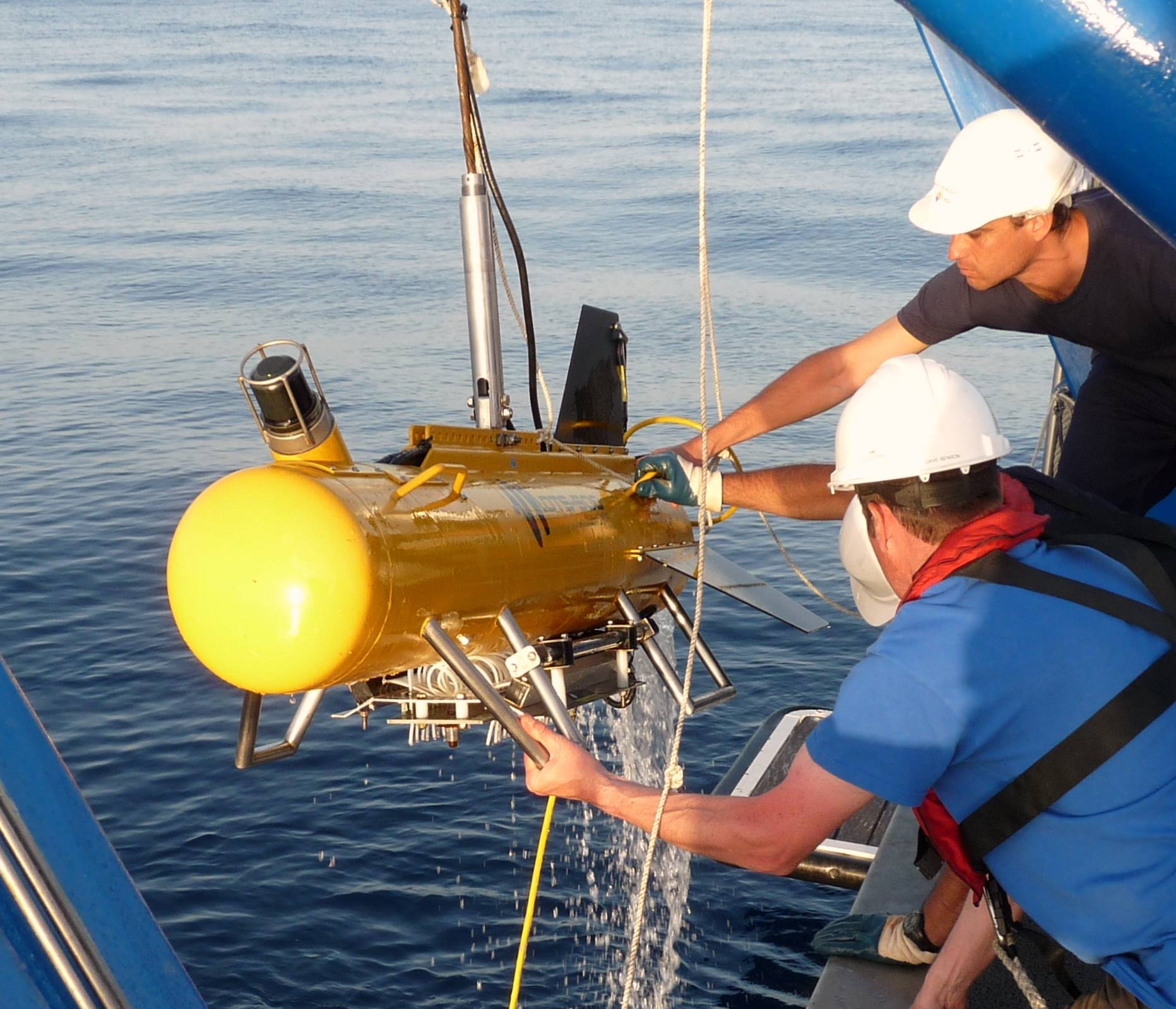

Photo: Applied Acoustics
-

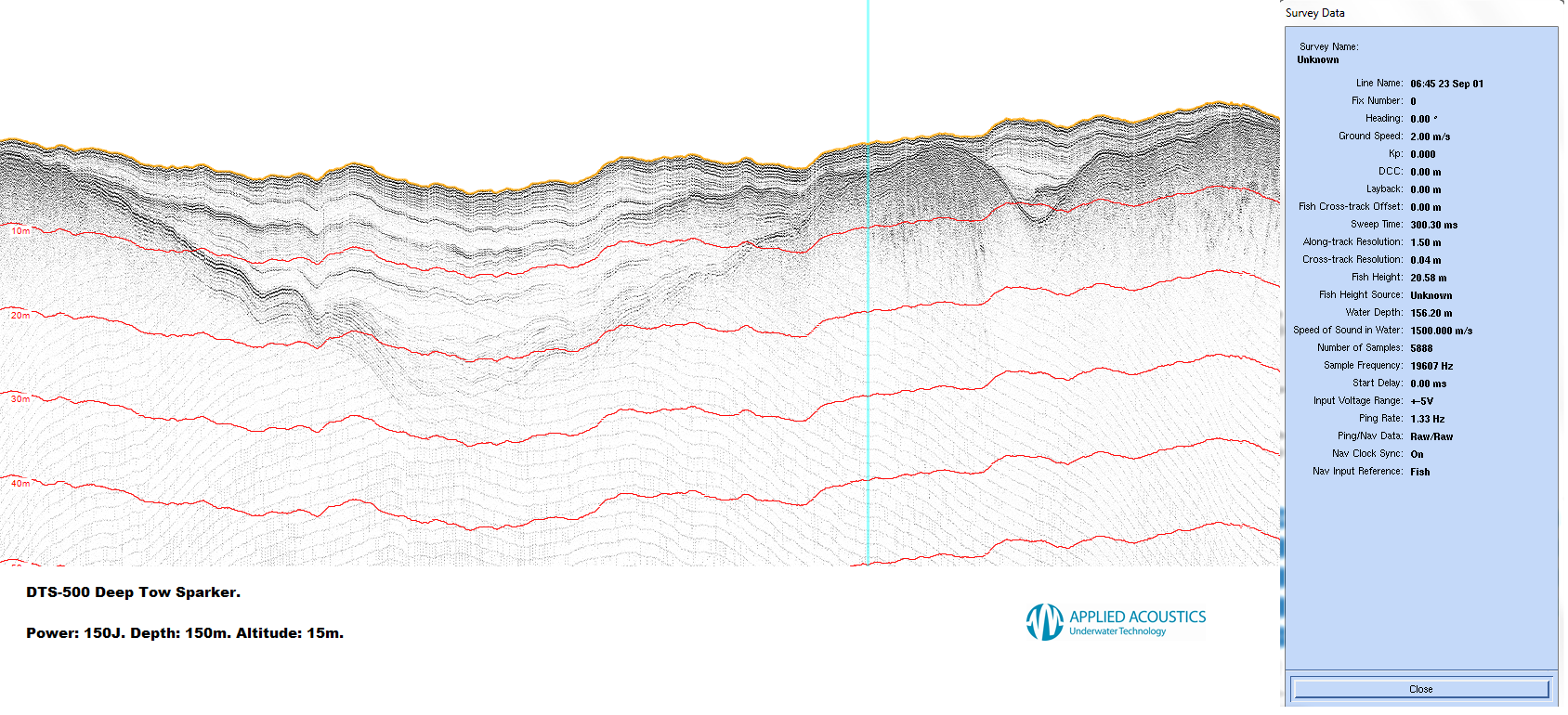

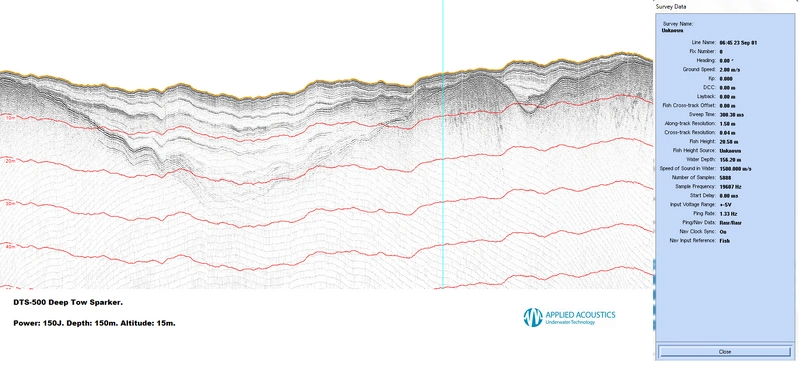

Image: Applied Acoustics
The Applied Acoustics deep-tow sparker DTS-500 has recently been deployed in the Mediterranean Sea, off the continental slope of Majorca, working on a project with SOCIB, the Balearic Islands Coastal Observing and Forcasting body. Assisted by SOCIB’s Oceanographic Instrumentation Technician, Carlos Castilla Álvarez, the DTS-500 was deployed in deep water, up to 500m, at a distance up to 1km from the SOCIB research vessel.
“We achieved greater than 60m penetration and with increased data resolution, up to 15cms, the sub-bottom profiling results were excellent across the full-working depth range of the DTS-500,” stated Project Leader, Neil MacDonald.
“We also deployed multiple positioning beacons, the new Applied Acoustics’ new 1100 Series, on both the tow-cable and towfish and used the recently launched Nexus 2 USBL positioning system with similar excellent results,” he added.
Designed for high and ultra-high resolution geophysical surveys the DTS-500 operates from a single industry standard coaxial tow cable up to 2,000m in length, has long-life durable electrodes and integral hydrophone receiver.
The complete system consists of a rack mount surface console, cable and robust towfish, and easily interfaces with standard data-loggers.
December 2024
